Window Level Presets

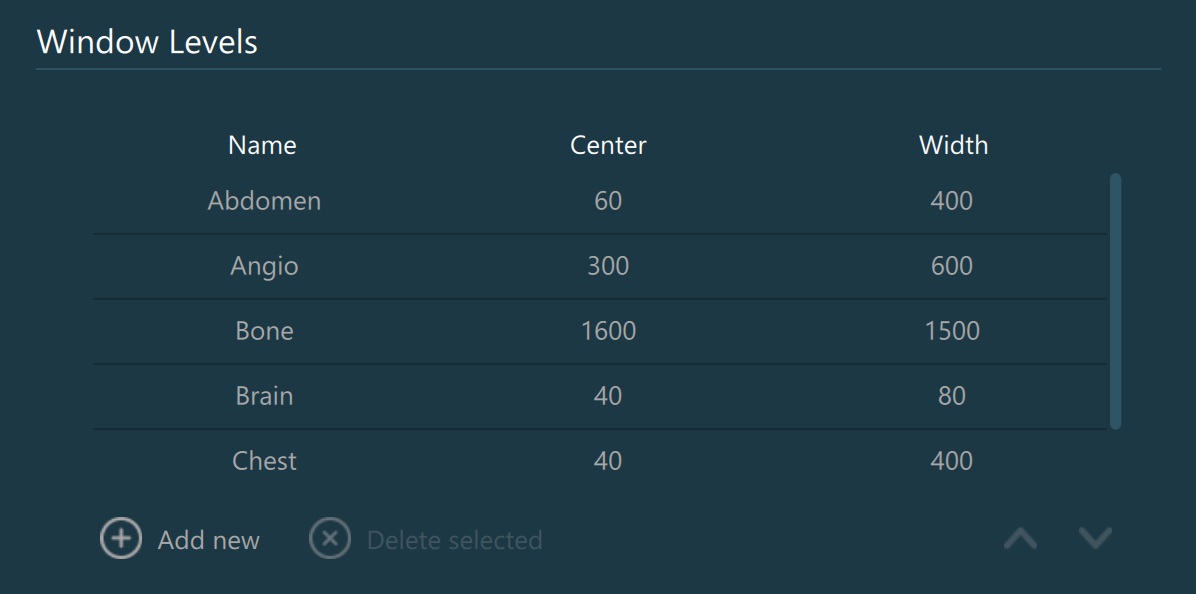

Window Level Presets are a quicker way to easily apply predefined window center and window width values to DICOM images. This section allows users to create, modify, reorder or delete the presets. Previously defined presets are shown in the list. Each preset consists of a user defined name, a window center value and a window width value. Mark presets as selected by pressing on the desired row or deselect a preset by holding the CTRL key and pressing on the selected row.

Edit Window Level Presets

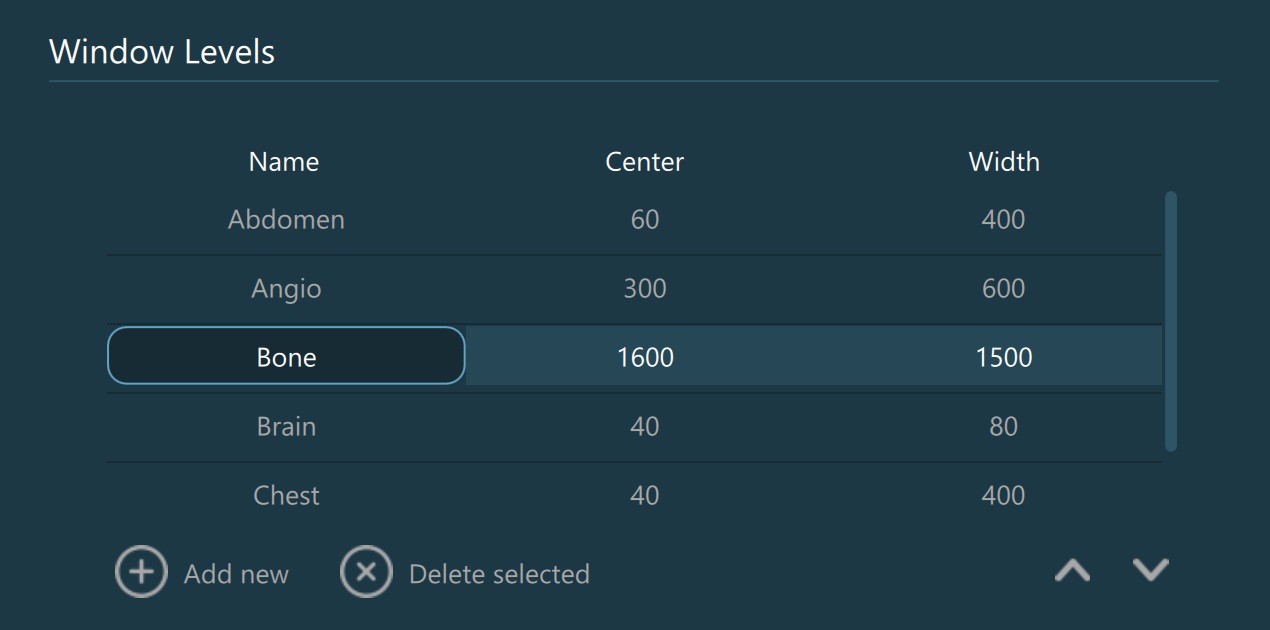

• Modify an existing preset by double-clicking on the corresponding field, marking it as editable. Specify the new value and press Enter or click outside of the field to finalize the modification.

• To add a new preset, press the Add new button, which will add a new entry into the preset list. Follow the steps from the modify section to update the newly added preset.

• To delete a preset, select it from the list and press the Delete selected button.

• Reorder presets by selecting them for the list and pressing on one of the Move up or Move down arrows. This changes the order in which the presets appear when you open them in the viewers.
