The VisioVIEW CT Viewer

The new VisioVIEW CT Viewer is a dedicated DICOM Viewer capable of 3D Multiplanar Reconstruction (MPR) of volumetric DICOM images (CT and MR modalities). Additionally, it also supports other viewing modes, including a 3D view offering simultaneous examination of all 3D planes (Axial, Coronal, and Sagittal) and 3D visualization of the body, a Curved MPR view (CMPR), Maximum Intensity Projection (MIP), Minimum Intensity Projection (MinIP), and Mean Intensity Projection.

To allow the use of the new VisioVIEW CT Viewer in case of CT or MR modality images, users can enable it by accessing the following section.

Sections of the VisioVIEW CT Viewer

The VisioVIEW CT Viewer consists of several sections, each tailored to a specific purpose. Below is a detailed description of each section.

../_images/image121.jpg

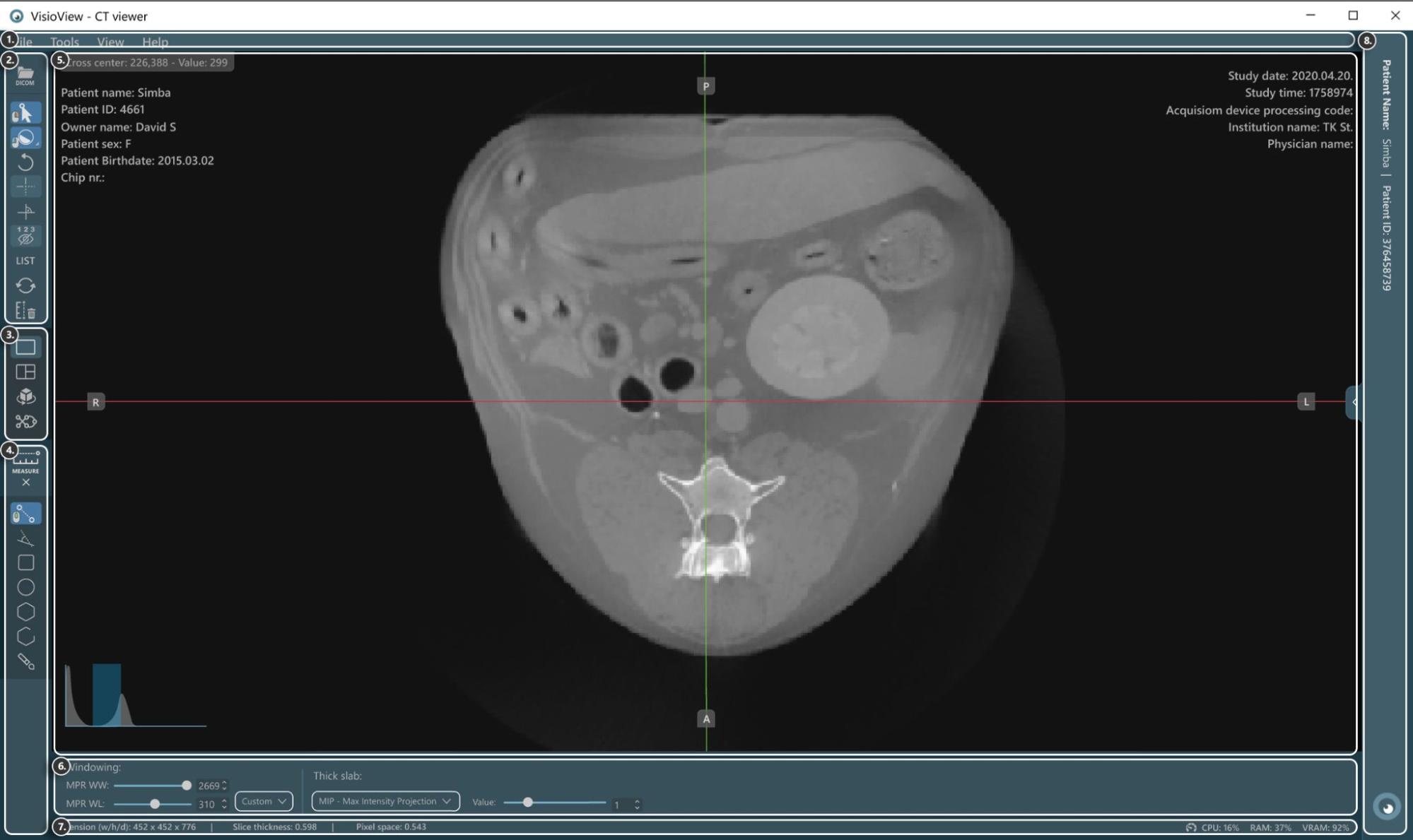

  1. Menu Bar

  2. Tools and Options

  3. View Selector

  4. Measurement Tools

  5. Viewer Area

  6. View Settings and Options

  7. Information Bar

  8. Study Information & Series Panel

Tools and Options

../_images/image213.jpg

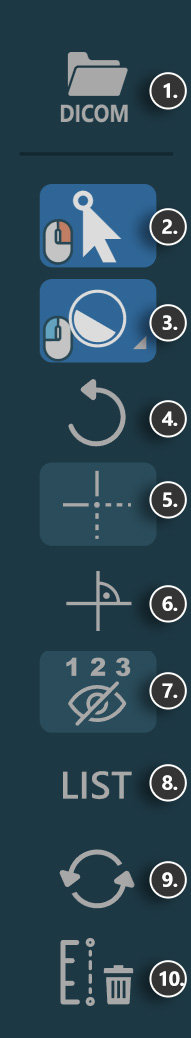

  1. Load DICOM file

  2. Select item

  3. Windowing tool (Default, Dynamic, or choose from existing windowing presets)

  4. Rotate image

  5. Hide/Show slicers

  6. Perpendicular/Separate slicers

  7. Hide/Show measurement information

  8. Open measurement list

  9. Restore image transformations to default

  10. Delete all measurements

View Selector

../_images/image166.jpg

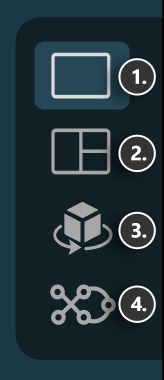

  1. Single MPR view

  2. Triple MPR view

  3. MPR + 3D

  4. MPR + Curved MPR (CMPR)

Measurement Tools

../_images/image317.jpg

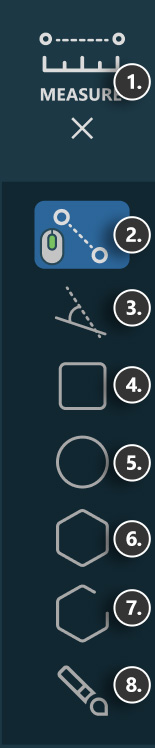

  1. Show/Hide measurement tools

  2. Distance measurement

  3. Angle measurement

  4. Rectangle measurement

  5. Oval measurement

  6. Polygon measurement

  7. Path length measurement

  8. Brush tool

Viewer Area

../_images/image39.jpg

  1. HU (Hounsfield Unit) pixel value

  2. Patient information

  3. Windowing histogram tool

  4. Slicers

  5. Study information

View Settings and Options

../_images/image328.jpg

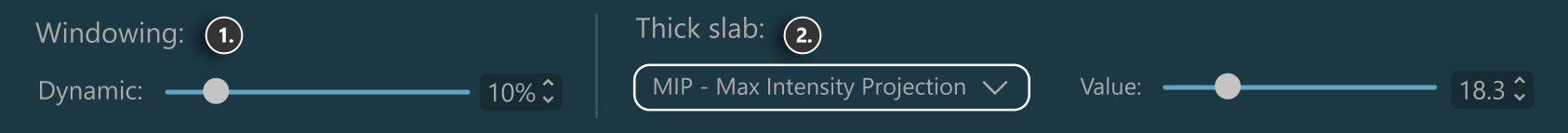

  1. Windowing settings

  2. Thick slab settings

Information Bar

../_images/image272.jpg

  1. DICOM image and resolution information

  2. Performance and resource usage information

Study Information & Series Panel

../_images/image142.jpg

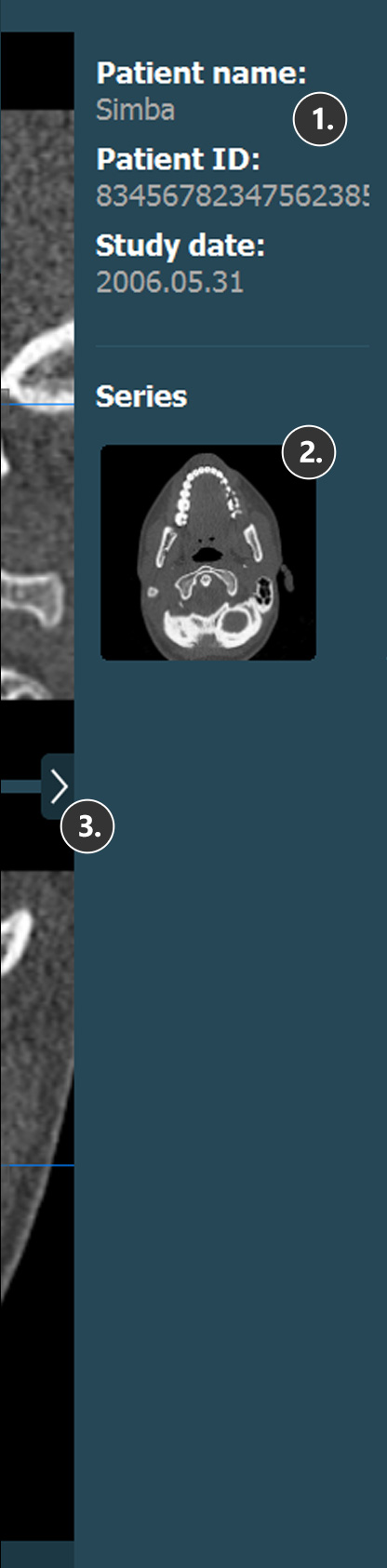

  1. Study DICOM information

  2. Currently opened series

  3. Show/Hide study information & series panel
