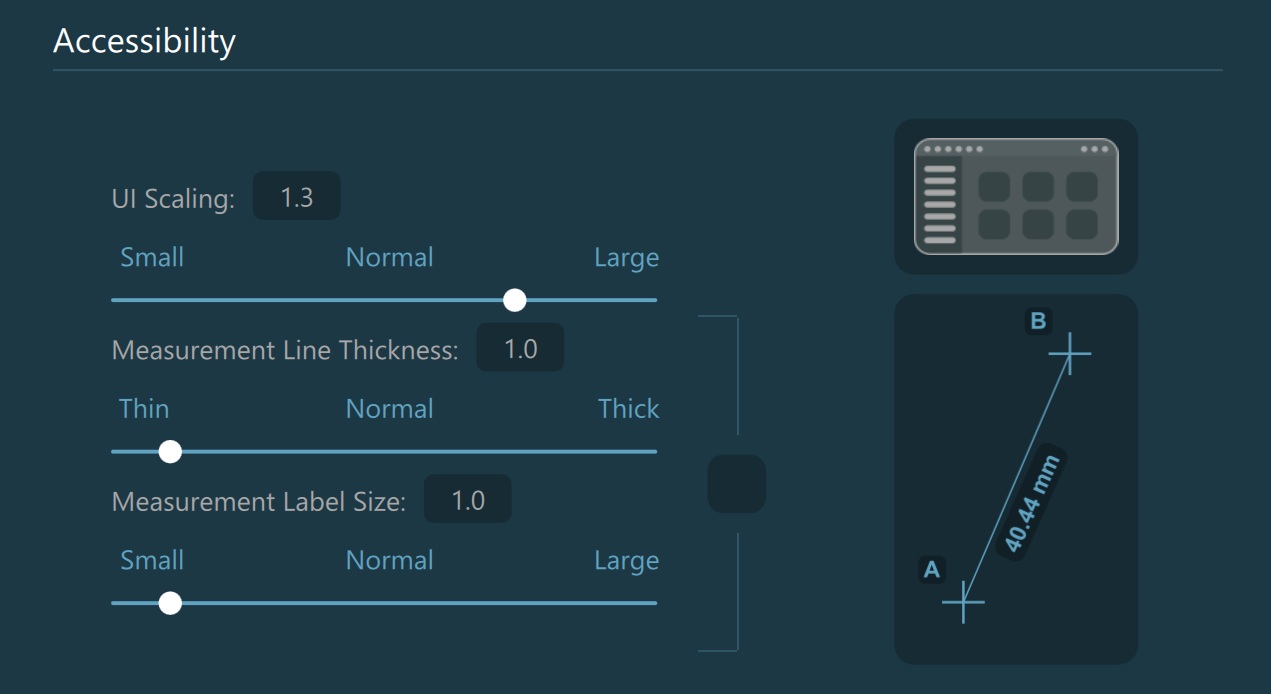

Accessibility Settings

UI Scaling

The scale level of the user interface can be easily adjusted by dragging the range slider to the preferred direction, pressing on one of the three available UI scaling presets (Small, Normal, and Large), or by entering the desired scale level manually in the UI Scaling input field. The default value for the UI scale level is 1.1. Supported values range from 0.7 to 1.5.

Measurement Line Thickness

The measuring tools available in the VisioVIEW Viewer can be changed to thicker and thinner, offerring better visibility and readability for the users. To modify the thickness of the measurements, simply drag the range slider to the preferred direction, press on one of the three available presets (Thin, Normal, and Thick), or enter the desired measurement thickness value in the Measurement Line Thickness input field. The default value for the thickness of the measuring tools is 1.0. Supported values range from 0.1 to 10.0.

Measurement Label Size

Each measuring tool available in the VisioVIEW Viewer has labels defining the boundaries of the measurement and providing the result. For better visibility of these labels, modify their size by dragging the range slider to the preferred direction, pressing on one of the three available presets (Small, Normal, and Large), or by entering the desired measurement label size value in the Measurement Label Size input field. The default value for the size of the measurement labels is 1.0. Supported values range from 0.1 to 10.0.

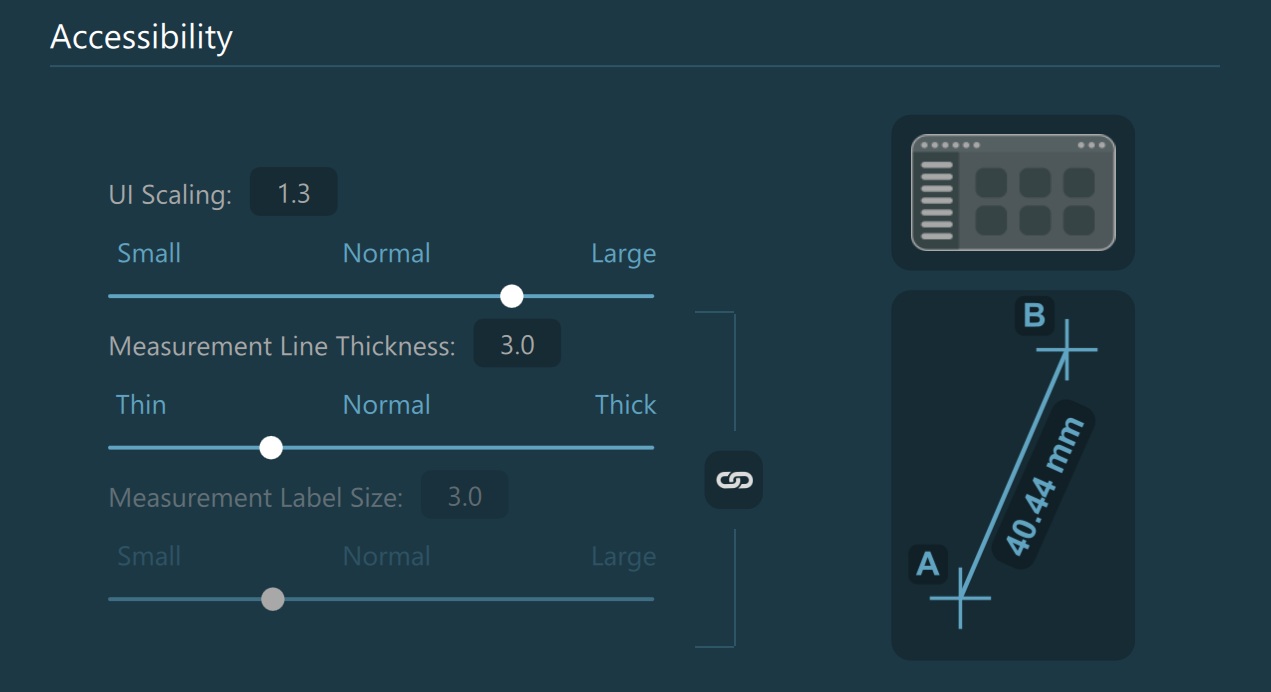

Simultaneous update to the Measurement Line Thickness and Measurement Label Size parameters is available by pressing the button connecting the two sections.
